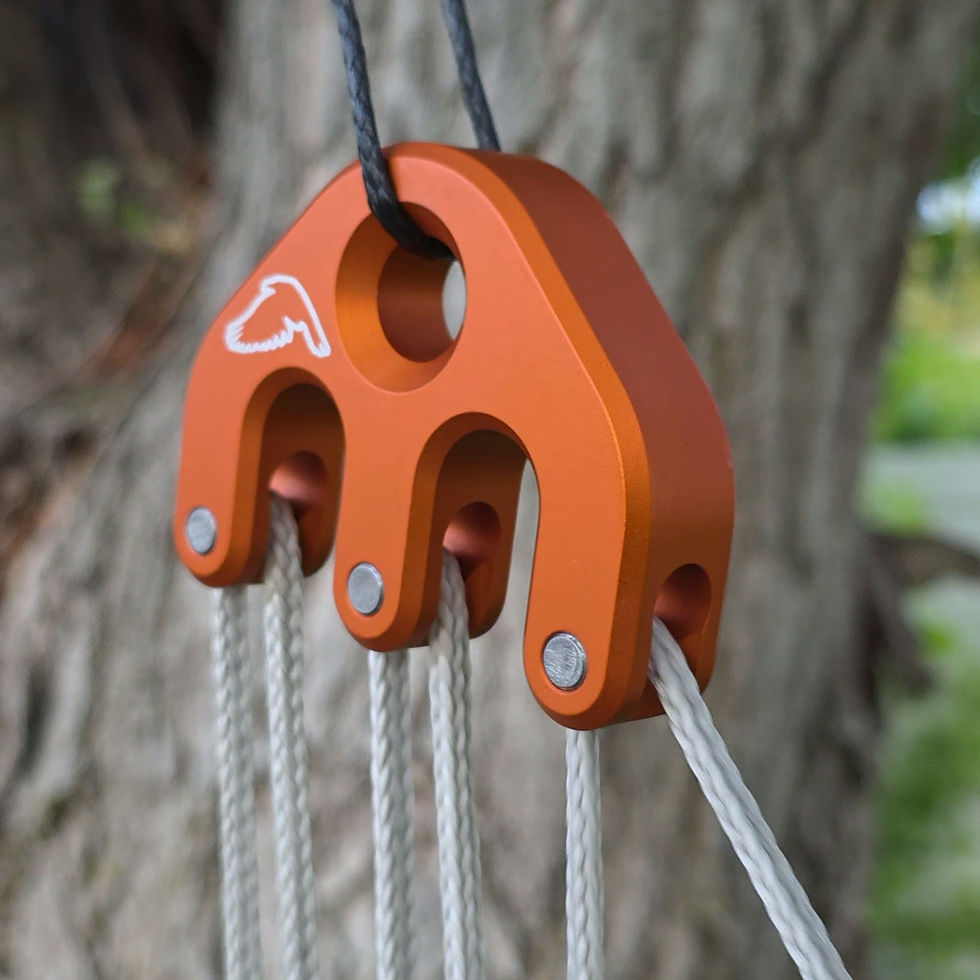

Game & Gear Hoist HD

Rating is 4.7 out of five stars based on 6 reviews
SKU: RE47002
$124.99Price
You asked, we delivered!

From the same Patent Pending design as the Original Game & Gear Hoist, we developed the HD to handle the ludicrous loads.

With a billet aluminum frame and larger diameter 304 Stainless Pins, the HD is designed for those cases where a heavier pull means the difference between success and failure afield.

We redesigned the tether loop to accept larger hooks for winches, tow ropes and shackles. Adventure bikers, horse back outfitters and snowmobile fanatics alike need one of these HD's in their kit. Always!
Finish
Quantity

  • Tech Specs

    Designed to accept UHMWPE Rope of a diameter LESS THAN 1/4 inch (6 mm)

    6061-T6 Aluminum Frame

    304 Stainless Pins

    7.65 Ounces

    Dimensions for Single Block: 2.6 in. x 1.6 in. x 0.6 in.



    WLL (Working Load Limit) of 2,500 lbs.

    5:1 Safety Factor

    *Always refer to weight ratings and load limits of the rope used during operation. Inspect for rope damage and practice safe operation at all times.

Reviews

Rated 4.7 out of 5 stars.
Based on 6 reviews
6 reviews
  • Barry SpencerMar 06
    Rated 5 out of 5 stars.
    Game & Gear Hoist

    I like the product idea, and will buy it once I have all the data.

    Question?

    I see the dimensions, & Weight, but do the pins rotate like a pully to eliminate drag?

    Was this helpful?
    Store Owner•
    Jun 27

    Hey Barry, the updated WLL is now in the "Tech Specs" portion of the page! We've successfully tested it to around a 12,000 load without any deformation or damage!


    The pins are definitely fixed, no moving parts getting gunked up with dust and dirt or corrosion! Use a low-friction line like the 7/64ths Dyneema or Spectra and you'll negate the majority of friction! Put it to work!

  • RandomMedicMar 31
    Rated 5 out of 5 stars.
    You need a life safety rated version immediately.

    This needs to have wedge pullies so the rope won't drag over the pins. Set it up for carabiners to clip on both sides. A friction loop for breaking. Load rate it for 29Kn, 7000 pound minimum and its the best thing ever built for remote rope rescue.

    Was this helpful?
    Store Owner•
    Jun 27

    You read our mind! We just published the WLL at 2,500 lbs with a 5:1 safety factor. In our lab tests we could not break or deform the hoist, rather every rope that we used was the failure point at around 12,500 pounds. We're excited to see all the applications, especially those saving lives!

  • Chuck HenryMay 19
    Rated 3 out of 5 stars.
    Verified
    Great Idea

    Does not work as well as I had hoped. My friend couldn't lift me (205 pounds) off the ground with it so I think one person would struggle to lift a big deer with it. That said, when I lifted the load with my friend pulling the rope/cord, we got it off the ground. Once in the air, there is great control of the load and easy lowering. It does work a little better with the amsteel rope than paracord. I'm thinking actual rollers with sealed bearings would work a lot better.

    Was this helpful?
  • VanJun 28
    Rated 5 out of 5 stars.
    Verified
    The easiest block and tackle I've ever used

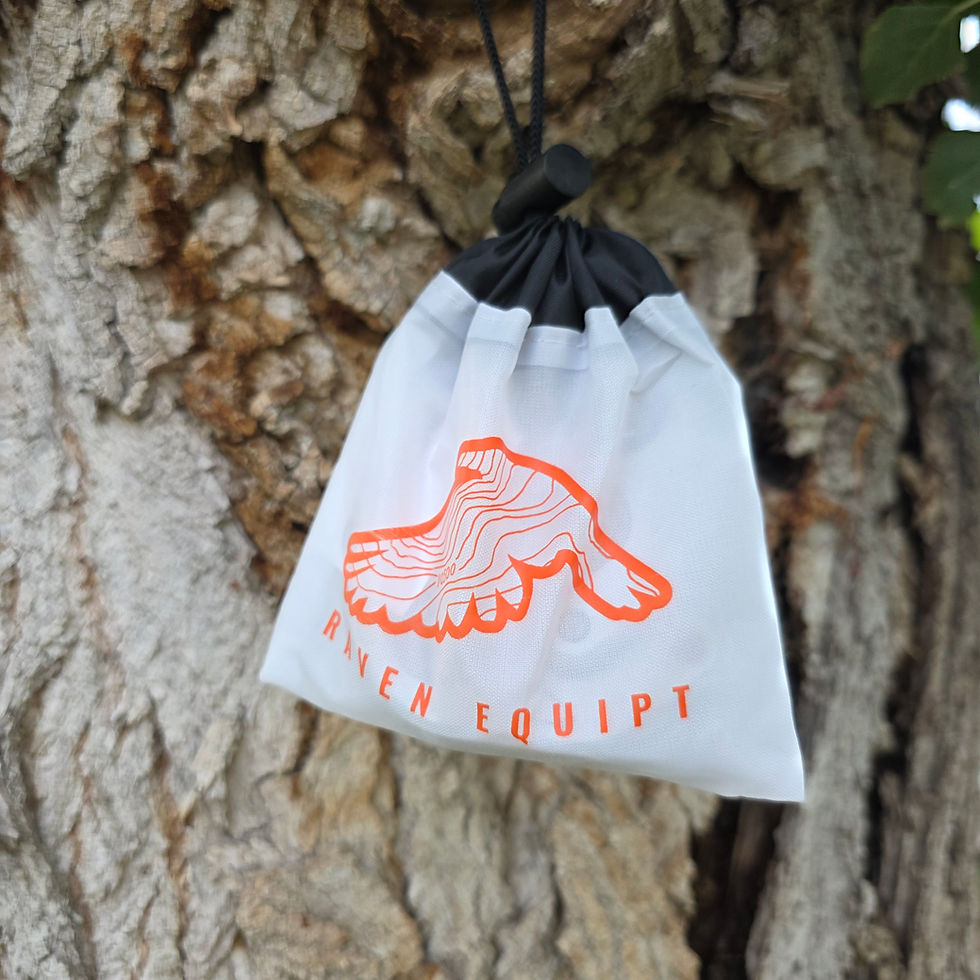

    There's a ton of options out there, but nothing compares to how easy this is to rig. One simple pass-through of the line and all the pivots do the rest of the work. The whole product impresses. The finish is mint, the carry bag keeps it organized. I love it!

    Was this helpful?
  • Kelly Jun 08
    Rated 5 out of 5 stars.
    Verified
    Top quality gear

    Hi. I ordered the "game & gear hoist HD" & it came as described.

    It's beautiful, if you like this type of gear & robust. I haven't used it yet, because I haven't bought the 1/4" Ultra High Molecular Weight rope. But I will soon. I'll probably buy 200-300 feet, (the hoist will take up 100 feet or so going back & forth 6 times.)

    The chamfered edges are smooth & the entire assembly seems strong, simply made & efficient.

    Thank you to the Raven team for producing well thought out product.
